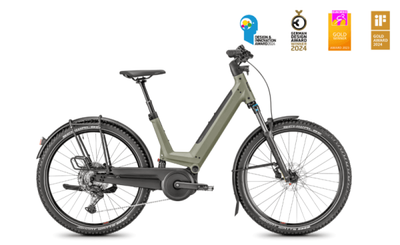

J. All - Cues - Suspended Rack - 625Wh

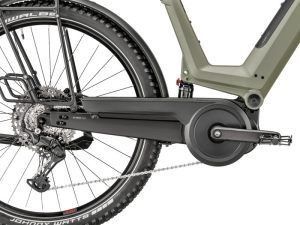

Drivetrain:

Shimano Cues – For a traditional setup offering the best possible shifting in all terrain, perfect for adventures off the beaten path!

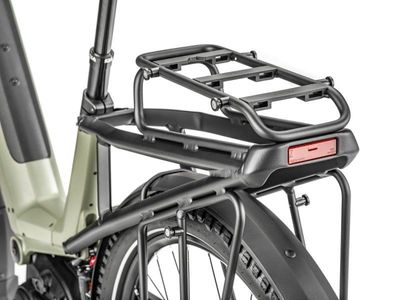

A suspended heavy duty rack (compatible with the MIK HD system and options such as baskets and child seats).

Design and Innovation

With three years in development, The Moustache J All’s frame is gravity cast in the Alsace region of France and has no welds. This unique method results in a frame consisting of just two parts connected by an axle and two oversized bearings. This allows for an open frame that remains stiff.

E-Mountainbike, a leading European magazine did a deeper dive behind the scenes into how Moustache has created this breakthrough in eBike innovation and design – https://ebike-mtb.com/en/production-moustache-j/

With the Moustache Magic Rear Shock the J All is a full suspension, step-through eBike with high end features such as a dropper seat post. The superior engineering quality is evident and this open step through design is a game changer to the eBike industry.

Specifications:


Frame: J, aluminium T6, one-piece gravity cast, low stepover, increased rigidity, internal cable routing, integrated battery and drive unit

Seatclamp: Moustache, alloy, integrated, 34.9mm

Headset: Acros, AZF-699, sealed bearings, internal routing, blocklock

Shock: Moustache, Magic Grip Control 115, specific Air Shock with 2-position platform and dynamic control of rebound, build-in 165x38mm, 115mm travel

Fork: SR Suntour, XCR 34 Air Boost 2CR LOR, rebound adjustment & lockout function, 120mm travel

Motor: Bosch, Performance SPORT, 250W, Smart System, 75Nm assists up to 38kph

Battery: Bosch, PowerTube 625Wh, vertical, Smart System

Display: Bosch, Kiox 500, Smart System, colour screen, customizable screens, sounds, Lock function (optional), « Walk assist », LED Remote bluetooth

Charger: Bosch, 4Ah

Bosch eBike GPS tracker and alarm

Rims: Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5″, internal width 23mm

Front Hub: Moustache, 32H, 15x110mm, thru axle

Tyres: Schwalbe, Johnny Watts, 27.5×2.60

Rear Hub: Moustache, 32H, 9x135mm, QR (Quick Release)

Stem: Moustache, alloy, adjustable, 65mm

Handlebar: Moustache, ergonomic, alloy, 680mm, 25° backsweep

Saddle: Selle Royal, Essenza Moderate Men

Seatpost: EXA, 900i, dropper-post w/remote lever, 31.6mm

Cranks: Moustache, aluminium, 170mm

Chainring: Gates, 50T

Front / Rear brake: Alhonga, HJ-472, hydraulic disc

Front/ Rear Rotor: Alhonga, 180mm

Front light: Trelock, Lighthammer, 100 lux, powered by main battery

Rear light: Spanninga, Presto2Guard, powered by main battery

Mudguard: Moustache, alloy, double wall design, w/alloy stays, stable and perfect protection thanks to the mudflap

Carrier: Moustache alloy light weight carrier,  Suspended luggage carrier optional

Range: Up to 140km

Gross Weight: 135kg

Bike Weight 30.6kg

Sizes: S (1,55 – 1,72m) M (1,65 – 1,85m) L (1,80 – 1,95m)

Seatpost travel: S: 75mm M: 100mm L: 150mm

Colors: Olive green, Silk grey

Conditions: Maximum distance, calculated for a 70kg rider in ideal conditions. Estimate your battery range.

Warranty: 5 years frame and fork Moustache Bikes – 2 years motor, battery
